FDMR

FD SERIES

FDMR

FUEGO
COMPUERTA
MARCADO CE
pdf_2
bim_2
dxf_2

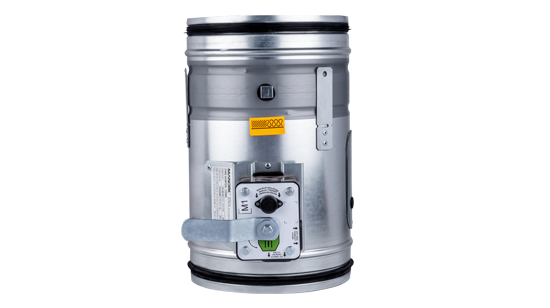

CARR-FDMR

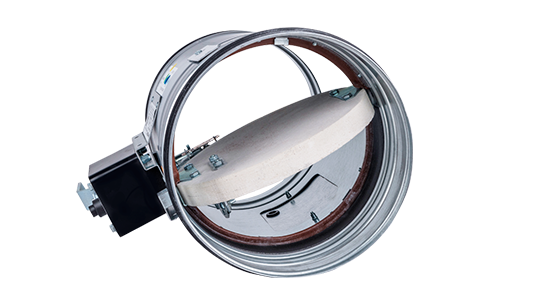

CARR-FDMR-2
FIRE DAMPER
Model FDMR.01. Manual operation and thermal outside of the damper with protection case.
Model FDMR.40. Electric servomotor 230 v. AC with return spring Belimo BFL/BFN/BF 230-T with two auxiliary contactors.
Model FDMR.50. Electric servomotor 24 v. AC/DC with return sprng Belimo BFL/BFN/BF 24-T with two auxiliary contactors.
The FDMR series circular fire dampers are indicated for installation in general ventilation systems as barriers between two fire sectors. They can be installed in both vertical and horizontal wall. For an optimum fit with the duct, there are perimeter seals at both ends of the damper.

Characteristics:

CE certified according to EN 15650.
Tested according to EN 1366-2.
Classified according to EN 13501-3+A1.
Fire resistance EIS 120, EIS 90.
Leakage according to EN 1751:
Outer casing class C.
Inner casing class 3.
Cycle test class C 10000 according to EN 15650.
Corrosion resistance according to EN 15650.
EN Certificate of Conformity No. 1391-CPR-2020/0004.
Declaration of Compliance No. PM/FDMR/01/21/1 Hygienic evaluation of fire dampers report No. 1.6/pos/19/19b.

Dimensions:

ø100 mm to ø800 mm
