DLE1

DL SERIES

DLE1

IMPULSIÓN
RETORNO
MÓVIL
LINEAL
TECHO
pdf_2
bim_2
dxf_2

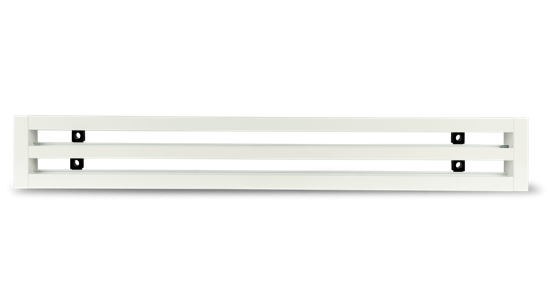

CARR-DLE1-2

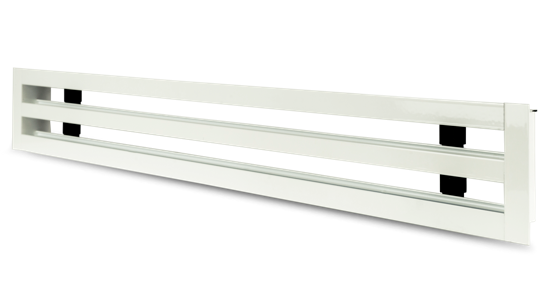

CARR-DLE1-1
LINEAR SLOT DIFFUSER, WITHOUT MOVABLE DEFLECTORS.
Model DLE1. Narrow frame linear slot diffuser, without movable deflectors.
Model DLE1-PL. Narrow frame linear slot diffuser, without movable deflectors and with (intake plenum).
Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.

Fixing systems:

(PM) Mounting brackets with screw fixing.

Accessories:

(PL) Plenum box with circular connection on the side. Includes brackets for ceiling mounting.
(PLA) Acoustically-isolated plenum box with circular connection on the side, includes brackets for ceiling mounting.
