4DV

4D SERIES

4DV

IMPULSIÓN
TECHO
MÓVIL
PARED

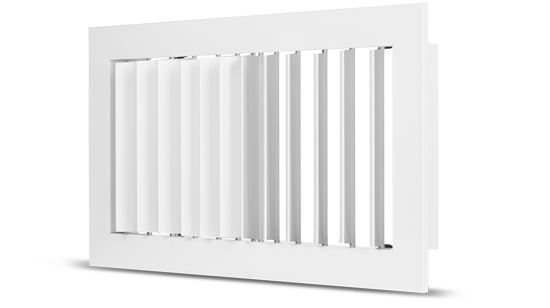

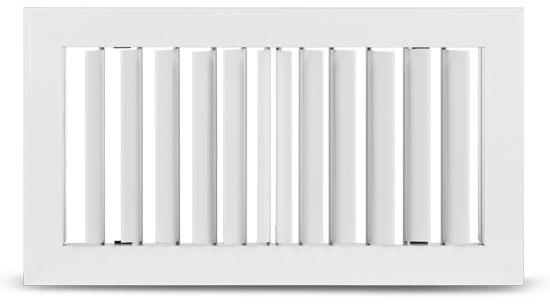

BIDIRECTIONAL CURVED BLADE GRILLE
Model 4DV. Grille with curved vertical movable blades, bidirectional.
Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.

Fixing systems:

(C) Clip (standard)
(T) Visible screw (optional)
(P) Concealed screw fixing (optional)

Accessories:

(MM) Aluminium mounting frame
Hole dimensions (L+7) x (h+7)
(X) Control damper, horizontal blades parallel to the L dimension.
Type CRX
(Z) Volume control damper, vertical blades parallel to H.
Type CRZ
