2FH

2F SERIES

2FH

RETORNO
TECHO
FIJO
PARED
GRILLE WITH FIXED BLADES AT 40º

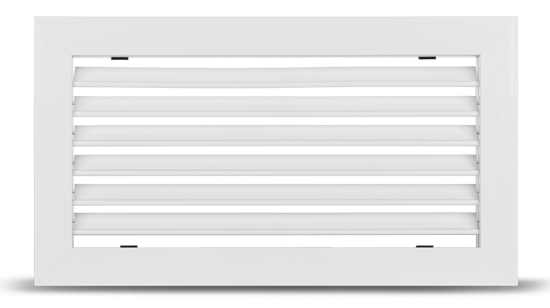

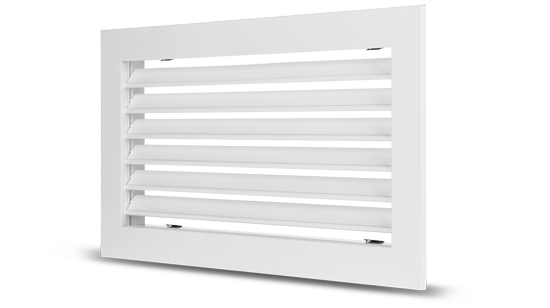

Model 2FH. Grille with fixed horizontal blades at 40º.
Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.

Fixing systems:

(C) Clip (standard)
(T) Visible screw (optional)
(P) Concealed screw fixing (optional)

Accessories:

(MM) Aluminium mounting frame
Hole dimensions (L+7) x (h+7)
(X) Control damper, horizontal blades parallel to the L dimension.
Type CRX
(Z) Volume control damper, vertical blades parallel to H.
Type CRZ
